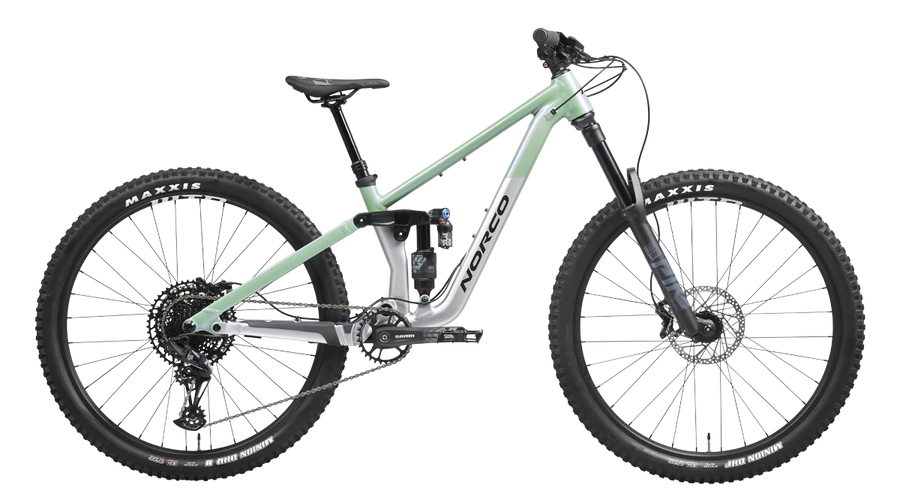

It’s hard to step things up when you can’t find a bike that fits right - so we built the Sight Youth 27.5". Now featuring a Fox Float X2 Performance Elite rear shock with custom light tune.
The Sight Youth 27.5" is burly enough to take whatever you shell out.
With 150mm of rear travel and 150mm up front, the suspension is custom-tuned to meet the needs of lighter riders who go big but still have some growing to do.
The Sight Youth 27.5" lets 4’9” – 5’2” shredders step things up sooner.
With generous standover clearance, youth-tuned suspension, and kid-sized touchpoints will help them capitalize on the rubber bones and questionable judgement that youth provides.
Lighter rider, lighter springs, lighter damping.
Suspension is tuned specifically to react perfectly under lighter riders with reduced offset RockShox Pike fork and a Fox Float X2 Performance Elite rear shock with custom light tune.
Specification
| Build |
|
| Frame |
Aluminum Youth All-Mountain, 150mm Travel, Ride Aligned™ |
| BB Standard |
BSA, Threaded |
| Color |
Green / Silver |
| Fork |
RockShox Pike/Lyrik RC, Charger Damper, 150mm, 37mm Offset |
| Travel |
150mm |
| Spring Type |
Air |
| Shock |
Fox FLOAT X2 Performance Elite, 2 Pos, Light Tune 185x50mm Trunnion |
| Travel |
150mm |
| Spring Type |
Air |
| Bottom Bracket |
SRAM Power Spline, BSA Threaded |
| Headset |
FSA #57 E Sealed Bearing, Tapered |
| Stem |
Alloy, 35mm Length, 31.8mm Clamp |
| Handlebar |
Alloy, 720mm, 15mm Rise |
| Saddle |
SDG Fly Jr. |
| Seatpost |
JD TranzX Light Action Dropper, 31.6mm, 120mm |
| Type |
Dropper |
| Pedals |
SDG Composite Jr. |
| Grips |
SDG Slater Lock-On |
| Groupset |
|
| Rear Derailleur |
SRAM SX Eagle |
| Crank |
SRAM SX Eagle, 30T, 165mm |
| Shifters |
SRAM SX Eagle |
| Cassette |
SRAM Eagle 11-50T |
| Chain |
SRAM Eagle |
| Brakes |
Front: TRP Slate EVO, Rear: TRP Slate EVO |
| Type |
Hydraulic Disc |
| Brake Levers |
TRP Slate EVO |
| Wheels |
|
| Rims |
WTB STP I25, Tubeless Ready |
| Front Hub |
Bear Pawl 15x110mm Boost, 6-Bolt |
| Rear Hub |
SRAM 746, 12x148mm Boost, HG, 6-Bolt |
| Tires |
Front: Maxxis Minion DHF 2.3" EXO/TR, Folding, Rear: Maxxis Minion DHR II 2.4" EXO/TR, Folding |
| Disc Rotors |
TRP 180mm |
Geometry
| Wheels |
27.5″ |
| Stack |
576 |
| Reach |
395 |
| Stack/Reach Ratio |
1.46 |
| Top Tube Length |
531 |
| Seat Tube Length |
350 |
| Seat Tube Angle |
76.7 |
| Head Tube Length |
100 |
| Head Tube Angle |
63.5 |
| BB Drop |
15 |
| BB Height |
342 |
| Front Center |
716 |
| Chainstay Length |
425 |
| Wheelbase |
1,141 |
| Rake |
37 |
| Trail |
137 |
| Standover Height |
650 |
| Stem Length |
35 |
| Crank Length |
165 |
