The Sight 160 is next level - big travel, big spec, and ready for big mountain riding. Whether you're out racing an enduro or love going fast on technical trails, this is your bike to blow through the chunder. Inspired by the gnarliest trails in the backwoods of BC, built for riders living in areas where the terrain demands more out of the bike they ride.
An all-round beefier build to handle everything you throw down. We've stepped up on spec to help you handle more; a 35mm rise bar, big name brakes with metallic pads, Double Down rear tire casing, and coil rear shock with Sprindex spring to ride hard.
All Sight models now include the One Up EDC lite tool to have you covered on the trail.
-
170mm/160mm travel for BC-inspired trails.
-
Downhill oriented geometry, with efficient pedaling.
-
Burly, high-quality components that can handle it all.
- Balanced weight distribution for top-of-class ride feel across sizes.
-
VPSHP Suspension Platform.
-
Built to accommodate rider preference in wheel size.
-
Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.
With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.

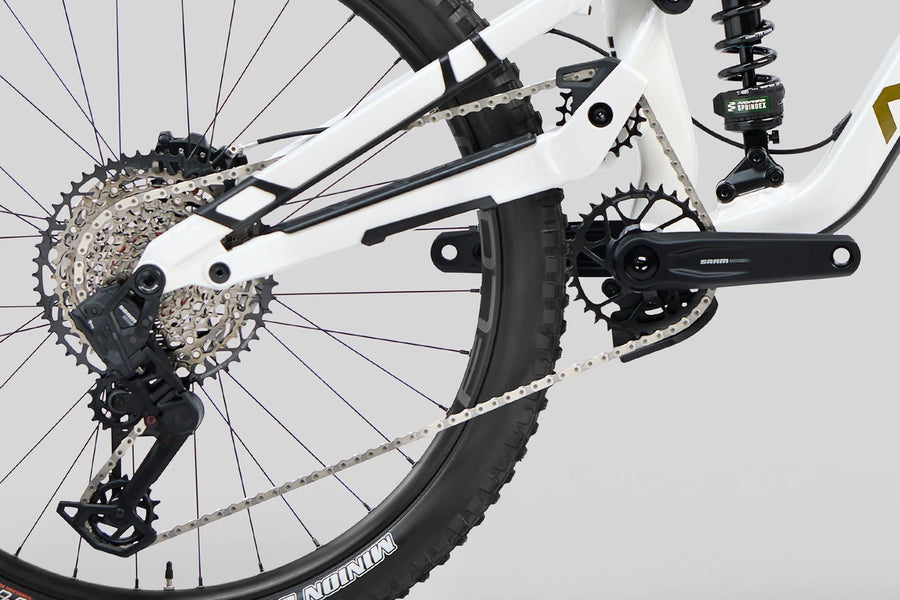

Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 29” and 27.5” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
Specification
Frame |
Aluminum Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
BB Standard: BSA, 73mm, Threaded
Hanger Standard: UDH
Color: Névé White
|
Fork |

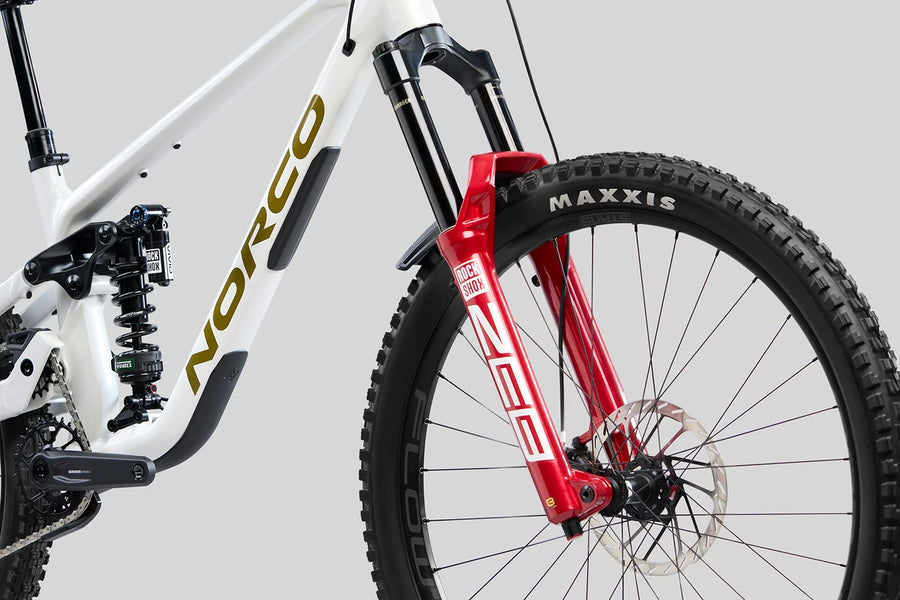

Rockshox Zeb Ultimate Charger 3.1, 170mm travel, 44mm offset, Fender Included
Travel: 170mm
Spring Type: Air
|
Shock |

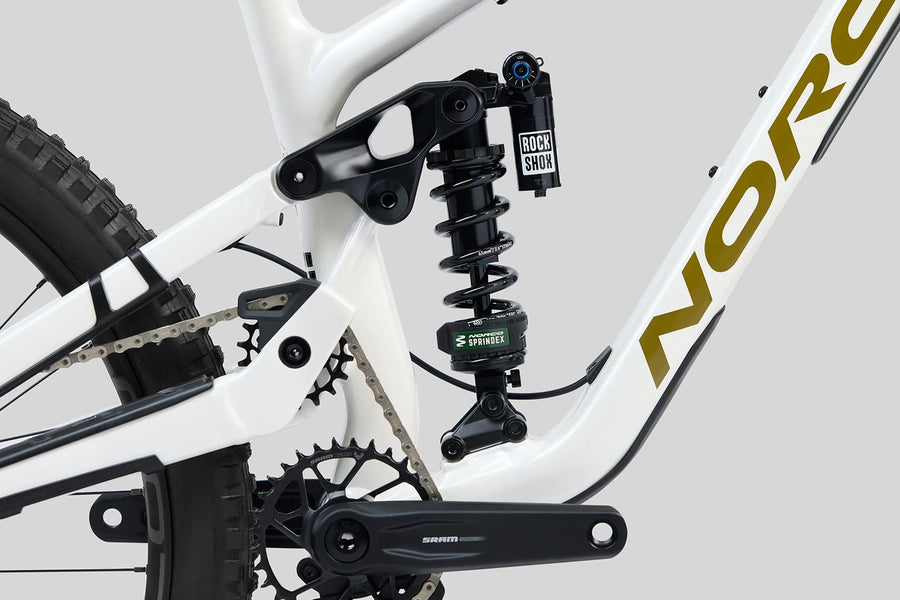

Rockshox Vivid Coil Ultimate, 205x65mm TR, Sprindex Spring
|
Bottom Bracket |
SRAM DUB, BSA 73mm, MTB WIDE
|
Headset |
FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 )
|
Stem |
OneUp 42mm Length , 35mm Clamp
|

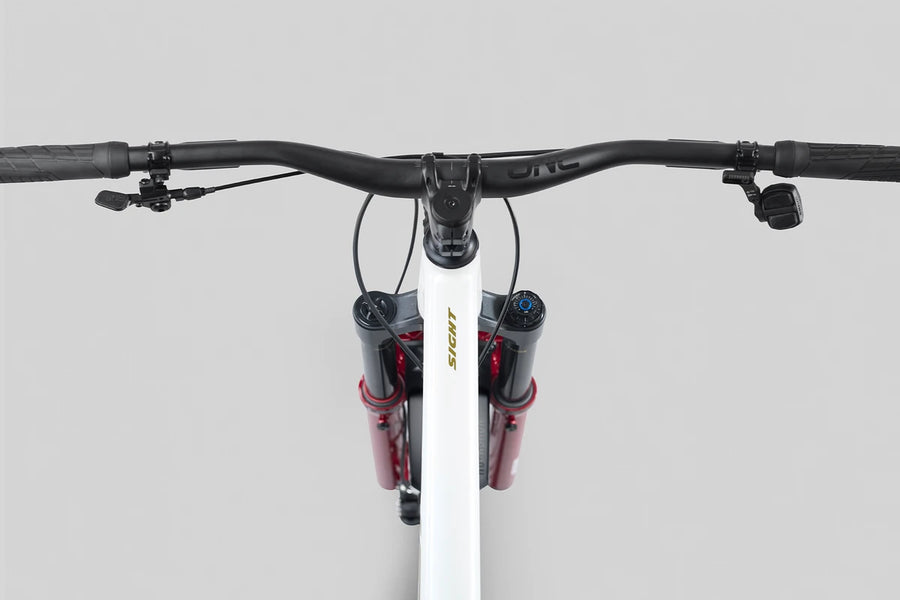

Handlebar |
OneUp Aluminum bar , 800mm , 35mm rise
|
Saddle |
WTB Volt 250
|
Seatpost |
OneUp V3 w/ One Up 1x lever, 34.9mm, 150mm (S1) -180mm (S2) -210mm (S3,S4) -240mm (S5)
|
Grips |
Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5)
|
Rear Derailleur |
SRAM S1000 Eagle AXS T-Type, 12sp
|
Crank |
SRAM Eagle S1000, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
|
Shifters |
SRAM Pod Ultimate Controller, MMX Bridge
|
Cassette |
SRAM 1270 Eagle T-Type, 10-52T, 12sp
|
Chain |
SRAM GX Eagle T-Type, 12sp
|
Chain Guide |
Norco Idler Guide and Lower Guide
|
Brakes |
Front: SRAM Maven Silver, Sintered Pads, Rear: SRAM Maven Silver, Sintered Pads
|
Brake Levers |
SRAM Maven Silver
|
Rims |
Stan's Flow S2, 32H, F- 29", R-27,5", 30mm ID
|
Front Hub |
DT Swiss 350, 15x110 Boost, 32H, 6-bolt
|
Rear Hub |
DT Swiss 350, 12x148 Boost, XD, 6-bolt
|
Tires |
Front: Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding, Rear: Maxxis Minion DHR II, 3C Maxx Terra DD, 27.5.5x2.4", Folding
|
Disc Rotors |
SRAM HS2, 200mm, 2mm thickness, 6 bolt
|
Geometry
Size/Geo |
1 / Small |
2 / Medium |
3 / Large |
4 / XLarge |
5 / XXLarge |
Wheels |
27.5″ / 29″ |
27.5″ / 29″ |
27.5″ / 29″ |
27.5″ / 29″ |
27.5″ / 29″ |
Stack |
622 |
631 |
640 |
650 |
659 |
Reach |
416 |
441 |
466 |
491 |
516 |
Stack/Reach Ratio |
1.50 |
1.43 |
1.37 |
1.32 |
1.28 |
Top Tube Length |
567 |
591 |
615 |
639 |
663 |
Seat Tube Length |
350 |
370 |
385 |
430 |
445 |
Seat Tube Angle |
76.3 |
76.5 |
77.0 |
77.3 |
77.5 |
Head Tube Length |
105 |
115 |
125 |
135 |
145 |
Head Tube Angle |
63.5 |
63.5 |
63.5 |
63.5 |
63.5 |
BB Drop |
21 |
21 |
21 |
21 |
21 |
BB Height |
353 |
353 |
353 |
353 |
353 |
Front Center |
768 |
797 |
826 |
856 |
885 |
Chainstay Length |
420 |
424 |
428 |
432 |
436 |
Wheelbase |
1,187 |
1,220 |
1,253 |
1,287 |
1,320 |
Rake |
44 |
44 |
44 |
44 |
44 |
Trail |
140 |
140 |
140 |
140 |
140 |
Standover Height |
671 |
685 |
694 |
715 |
725 |
Stem Length |
40 |
40 |
40 |
40 |
40 |
Crank Length |
170 |
170 |
170 |
170 |
170 |
