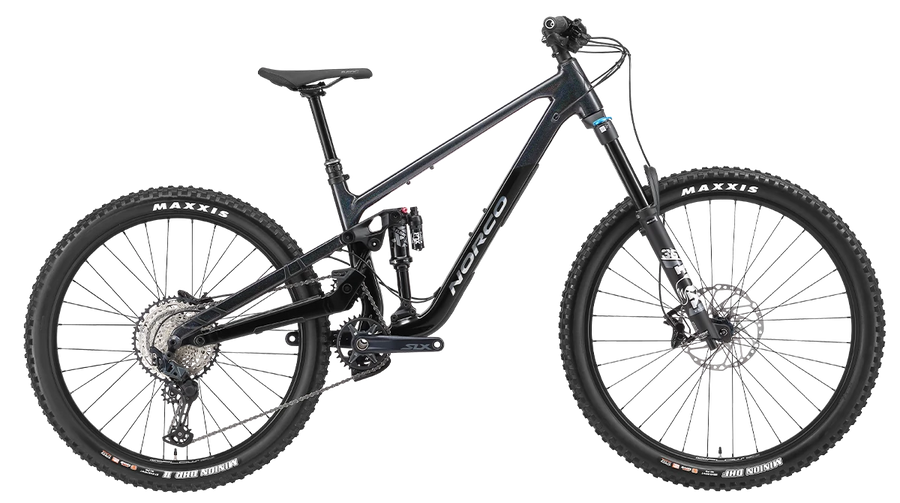

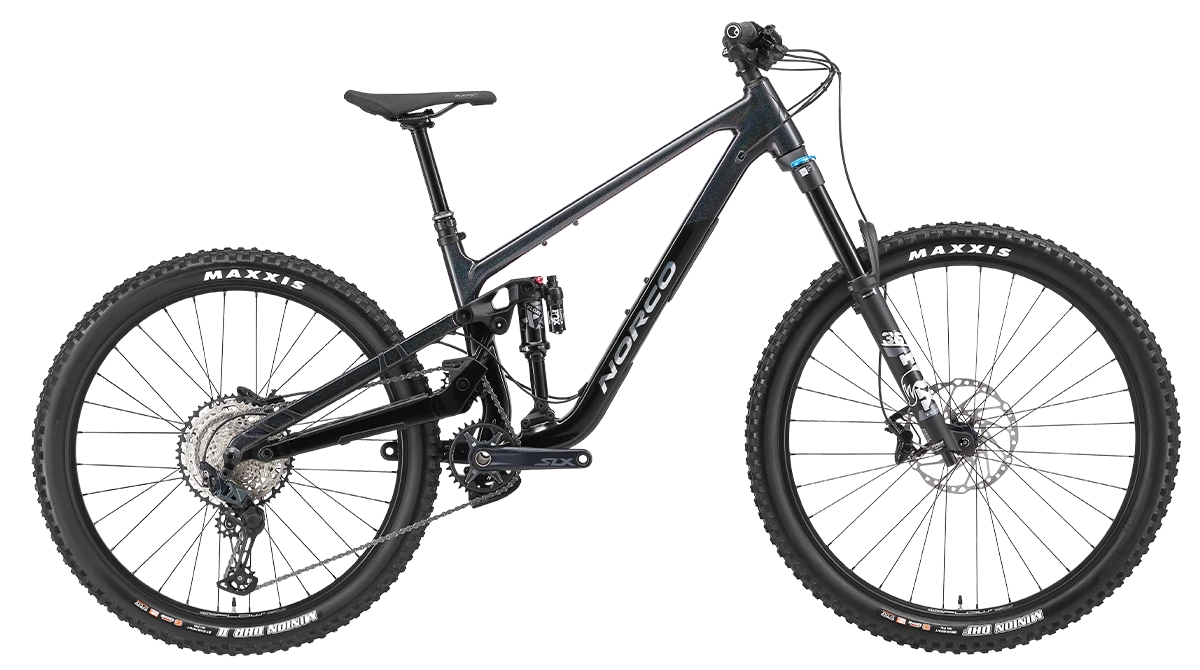

Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
VPSHP Suspension Platform
Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.
Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.
Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 27.5” and 29” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.
- 160mm/150mm of travel with 29" and MX options
- 29" and mixed wheelsizes
- Available in carbon and aluminum.
- VPSHP suspension platform.
- Norco Design Technology
- Exactly the speed you need when you need it.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
Specification
Frame |
Sight Aluminum, VPSHP, 150mm Travel, UDH Compatible
BB Standard: BSA, 73mm, Threaded
Hanger Standard: UDH
Color: Black
|
Fork |
Fox FLOAT 36 Rhythm, Sweep Adjust, 160mm, 44mm Offset
Travel: 160mm
Spring Type: Air
|
Shock |
Fox FLOAT X Performance, LSC LSR, 205x60mm Trunnion
|
Bottom Bracket |
Shimano Sealed Bearing BSA Threaded
|
Headset |
FSA #57 E Sealed Bearing
|
Stem |
Alloy, 40mm Length, 35mm Clamp
|
Handlebar |
6061 Alloy, 800mm, 25mm Rise
|
Saddle |
SDG Bel Air V3
|
Seatpost |
TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
|
Grips |
SDG THRICE
|
Rear Derailleur |
Shimano SLX RD-M7100
|
Crank |
Shimano SLX HollowTech 2, FC-M7100, 34T, 32T on Size 1, 170mm
|
Shifters |
Shimano SLX SL-M7100-R
|
Cassette |
Shimano SLX CS-M7100-12, 10-51T, 12 Speed
|
Chain |
Shimano Deore CN-M6100
|
Chain Guide |
Norco Idler Guide and Lower Guide
|
Brakes |
Front: Shimano Deore MT520 4 Piston, Metallic Pads, Rear: Shimano Deore MT520 4 Piston, Metallic Pads
|
Brake Levers |
Shimano Deore MT-520
|
Rims |
Stan's Flow D, Black 32H, 29"/27.5"
|
Front Hub |
Shimano SLX 15x110mm Boost, Center Lock
|
Rear Hub |
Shimano SLX FH-M7110, Micro Spline, Center Lock
|
Tires |
Front: Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO+ / TR, Folding, Rear: Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding
|
Disc Rotors |
Shimano RT-64, 200mm
|
Geometry
geo |
S (1) |
MED (2) |
Lrg (3) |
XL (4) |
XXL (5) |
Wheels |
27.5″ / 29″ |
27.5″ / 29″ |
27.5″ / 29″ |
27.5″ / 29″ |
27.5″ / 29″ |
Stack |
618 |
627 |
636 |
645 |
654 |
Reach |
423 |
448 |
473 |
498 |
523 |
Stack/Reach Ratio |
1.46 |
1.40 |
1.35 |
1.30 |
1.25 |
Top Tube Length |
565 |
589 |
613 |
637 |
661 |
Seat Tube Length |
350 |
370 |
385 |
430 |
445 |
Seat Tube Angle |
77.0 |
77.3 |
77.5 |
77.8 |
78.0 |
Head Tube Length |
105 |
115 |
125 |
135 |
145 |
Head Tube Angle |
64.0 |
64.0 |
64.0 |
64.0 |
64.0 |
BB Drop |
25 |
25 |
25 |
25 |
25 |
BB Height |
353 |
353 |
353 |
353 |
353 |
Front Center |
762 |
791 |
820 |
850 |
879 |
Chainstay Length |
420 |
424 |
428 |
432 |
436 |
Wheelbase |
1,181 |
1,214 |
1,247 |
1,281 |
1,314 |
Rake |
44 |
44 |
44 |
44 |
44 |
Trail |
135 |
135 |
135 |
135 |
135 |
Standover Height |
673 |
679 |
685 |
708 |
720 |
Stem Length |
40 |
40 |
40 |
40 |
40 |
Crank Length |
170 |
170 |
170 |
170 |
170 |
