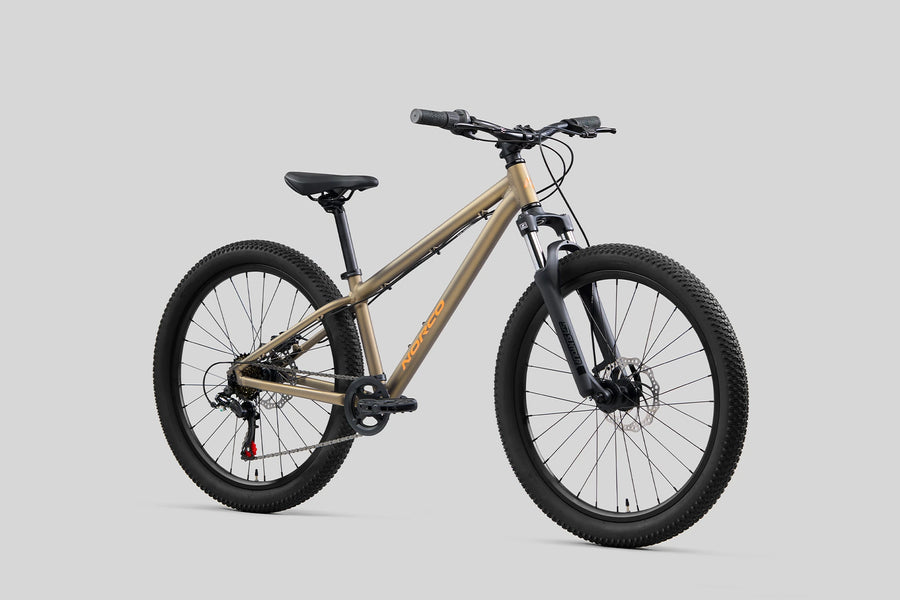

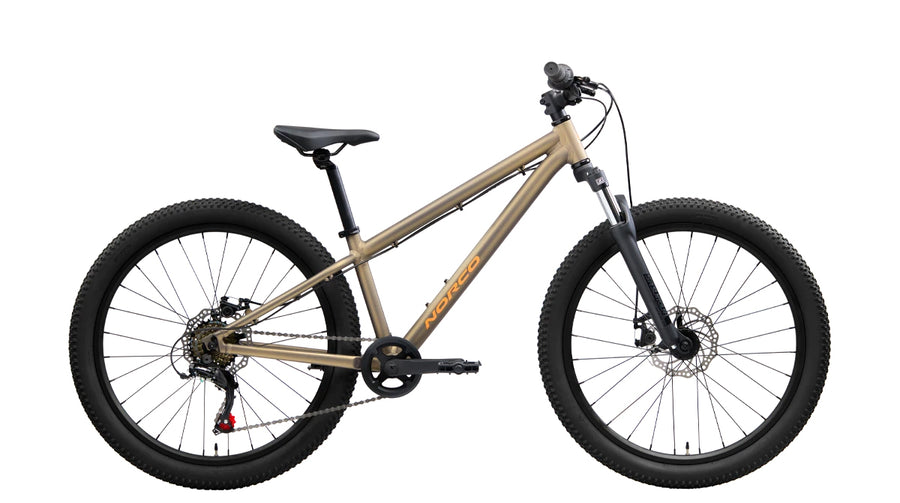

The durable and lightweight Storm 24 provides simple upkeep and operation to help young riders find the best line and stop on a dime.
Progress quickly with Storm 24.
Storm 24’s lightweight, durable aluminum frame and size-specific fork travel of 80mm combine with a simple, lightweight drivetrain, quality mechanical disc brakes and optimized fit for riders from 4’2” to 4’8”, building and a love for dirt that’ll last a lifetime.
- Just enough fork travel to ease skill building and save weight.
- Quicker starts and easy climbs make every ride enjoyable.
- Putting a stop to sketchy brakes.
- Models to meet the needs of every young rider.
- No Other Way Limited Lifetime Warranty.
Specification
Frame |
Aluminum, 9x135mm QR, 24" |
Fork |
SR Suntour XCT Coil w/Soft Spring and Preload, 80mm, 9X100 QR |
Rear Shifter |
Shimano SL-RV200-6R, 6sp, gripshift |
Rear Derailleur |
Shimano TZ-500, 6sp, Direct mount |
Crankset |
Alloy 3pc, 140mm, 28T Narrow Wide |
Bottom Bracket |
Sealed bearing, ST 68mm |
Cassette |
Shimano MF-TZ500-6, 14-28T, 6sp, Freewheel |
Chain |
KMC Z6 |
Front Brake |
Tektro Aries, Resin pads, Mechanical Disc |
Front Brake Rotor |
160mm, 6-Bolt |
Rear Brake |
Tektro Aries, Resin pads, Mechanical Disc |
Rear Brake Rotor |
160mm, 6-Bolt |
Brake Levers |
Tektro Aries alloy Jr. Levers w/reach adjust |
Handlebar |
Alloy Jr. Riser, 600mm, 30mm Rise |
Stem |
Alloy 40mm Length, 31.8mm Clamp |
Seatpost |
Norco Alloy 27.2mm, 250mm length |
Headset |
External Cup Ball Bearing, 1-1/8" EC 34 |
Headset Spacer |
1x10mm , 2x5mm |
Saddle |
Norco Jr XC, Steel Rail |
Grips |
Norco Youth, 115mm Length |
Pedals |
Jr. MTB Flat, 9/16" |
Seatpost Clamp |
Norco Alloy Bolted, 31.8mm ID |
Front Hub |
Formula DC-1420 , 9x100mm QR, 28h, 6-bolt |
Rear Hub |
Formula DC-31R-7S, 9x100mm QR, Freewheel, 28h, 6-bolt |
Rims |
Aluminum DW, 28h, 24" MTB |
Front Tire |
CY Trail, 24x2.25", Wire |
Rear Tire |
CY Trail, 24x2.25", Wire |
Spokes/Nipples |
Stainless Steel w/Brass Nipples - Black |
Weight |
12.04 kg (26.5 lbs)
|
Size Chart / Geometry
optimized fit for riders from 4’2” to 4’8”
|
|
Reach |
365 |
Stack |
523 |
Head Tube Angle |
66 |
Fork Offset |
40 |
Seat Tube Length |
305 |
Effective Seat Tube Angle |
73 |
Rear Centre Length |
380 |
Bottom Bracket Drop |
43 |
Bottom Bracket Height |
267 |
Horizontal Top Tube |
525 |
Wheelbase |
1000 |
Standover |
532 |
Head Tube Length |
90 |
Trail |
94 |
Recommended Seatpost Drop |
0 |
Maximum Post Insertion |
283 |
Stem Length |
45 |
Crank Length |
152 |
Tire Size |
2.2" – 2.4" |
Water Bottle Compatible |
1 x 620mL |
