Adventures can take you anywhere, and Occam LT is ready. Seriously light and tough with aggressive geometry, this is a bike for pushing your limits and enjoying yourself. Even on the rowdiest trails, the progressive suspension is smooth and supportive, and works perfectly with coil shocks. Our improved Steep and Deep design is deeper than ever, with full insertion for a 230mm dropper on all frames.
Attitude Adjust - Simple, Fast and Easy to Use
When you want to tune things, Attitude Adjust lets you slacken and lower the geometry in less than 15 seconds.
Why Choose an Aggressive Trail Bike?
Why do we choose an aggressive trail bike over an Enduro machine? Occam LT thinks that the answer is fun. The perfect mix of climbing ability and descending prowess. Light, agile and responsive, Occam LT begs to be thrown around the trails and to pop off every feature.
Specification
| Frame |
Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool

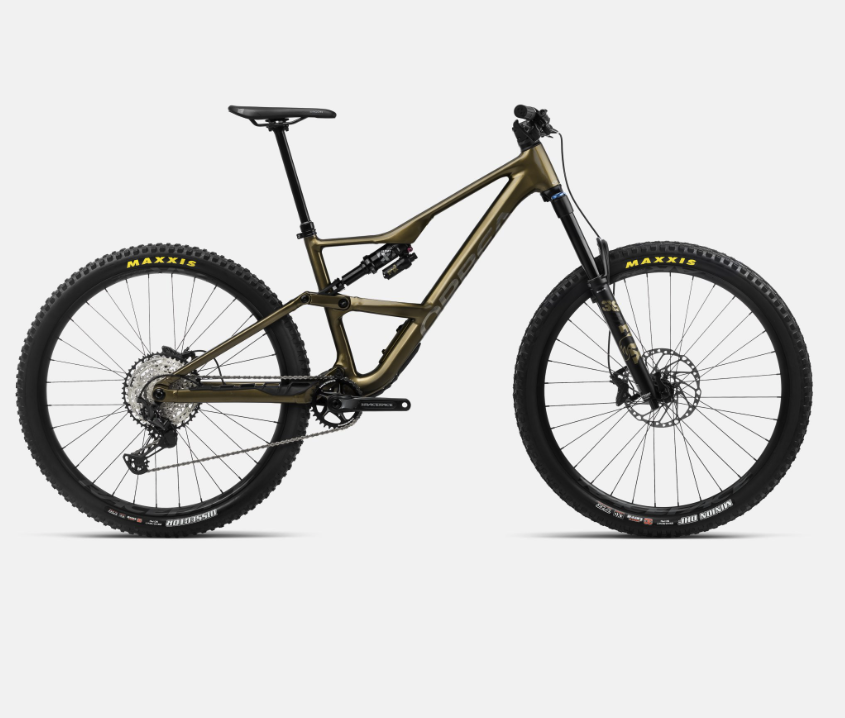

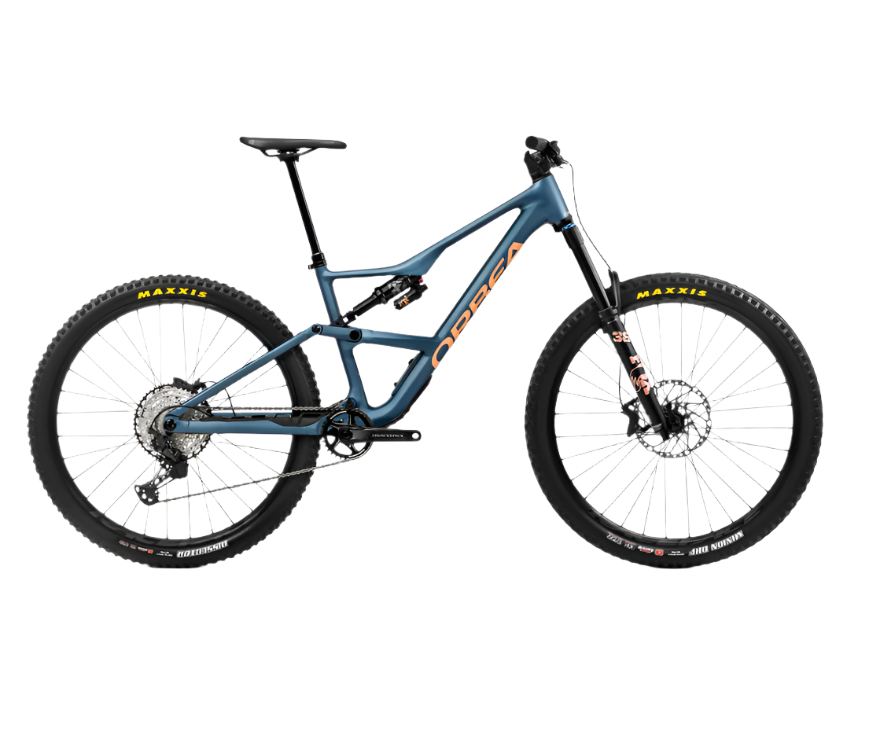

Colors: Slate Blue - Orange Cloud (Matt); Spicy Lime - Corn Yellow (Gloss); Metallic Olive Green - Titanium Black (Gloss)
|
| Fork |
Fox 36 Float Performance 160 Grip 3-Position QR15x110
Travel: 160mm
Spring Type: Air
|
| Shock |
Fox Float X Performance 2-Position Evol LV custom tune 210x55mm
|
| Headset |
FSA 1-1/2" Integrated Aluminium Cup
|
| Stem |
OC Mountain Control MC20, 0º
|
| Handlebar |
OC Mountain Control MC30, Rise20, Width 800
|
| Saddle |
Ergon SM Enduro
|
| Seatpost |
OC Mountain Control MC21, 31.6mm, Dropper
|
| Grips |
OC Lock On
|
| Rear Derailleur |
Shimano XT M8100 SGS Shadow Plus
|
| Crank |
Race Face Aeffect 32t
|
| Shifters |
Shimano SLX M7100 I-Spec EV
|
| Cassette |
Shimano CS-M7100 10-51t 12-Speed
|
| Chain |
Shimano M6100
|
| Brakes |
Shimano M6120 Hydraulic Disc
|
| Rims |
Race Face AR 30c Tubeless Ready
|
| Tires |
Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
|
geometry
| Component |
SM High |
SM Low |
MD High |
MD Low |
LG High |
LG Low |
XL High |
XL Low |
| Wheels |
29″ |
29″ |
29″ |
29″ |
29″ |
29″ |
29″ |
29″ |
| Stack |
616 |
621 |
621 |
625 |
630 |
635 |
639 |
644 |
| Reach |
435 |
430 |
460 |
455 |
485 |
480 |
510 |
505 |
| Stack/Reach Ratio |
1.42 |
1.44 |
1.35 |
1.37 |
1.30 |
1.32 |
1.25 |
1.28 |
| Top Tube Length |
571 |
572 |
597 |
598 |
624 |
625 |
651 |
653 |
| Seat Tube Length |
405 |
405 |
415 |
415 |
430 |
430 |
460 |
460 |
| Seat Tube Angle |
77.5° |
77.0° |
77.5° |
77.0° |
77.5° |
77.0° |
77.5° |
77.0° |
| Head Tube Length |
95 |
95 |
100 |
100 |
110 |
110 |
120 |
120 |
| Head Tube Angle |
64.5° |
64.0° |
64.5° |
64.0° |
64.5° |
64.0° |
64.5° |
64.0° |
| BB Drop |
28 |
36 |
28 |
36 |
28 |
36 |
28 |
36 |
| BB Height |
350 |
342 |
350 |
342 |
350 |
342 |
350 |
342 |
| Front Center |
760 |
762 |
787 |
789 |
816 |
819 |
846 |
848 |
| Chainstay Length |
440 |
440 |
440 |
440 |
440 |
440 |
440 |
440 |
| Wheelbase |
1,199 |
1,200 |
1,226 |
1,227 |
1,255 |
1,257 |
1,285 |
1,286 |
| Rake |
44 |
44 |
44 |
44 |
44 |
44 |
44 |
44 |
| Trail |
134 |
137 |
134 |
136 |
135 |
136 |
135 |
|
