Description

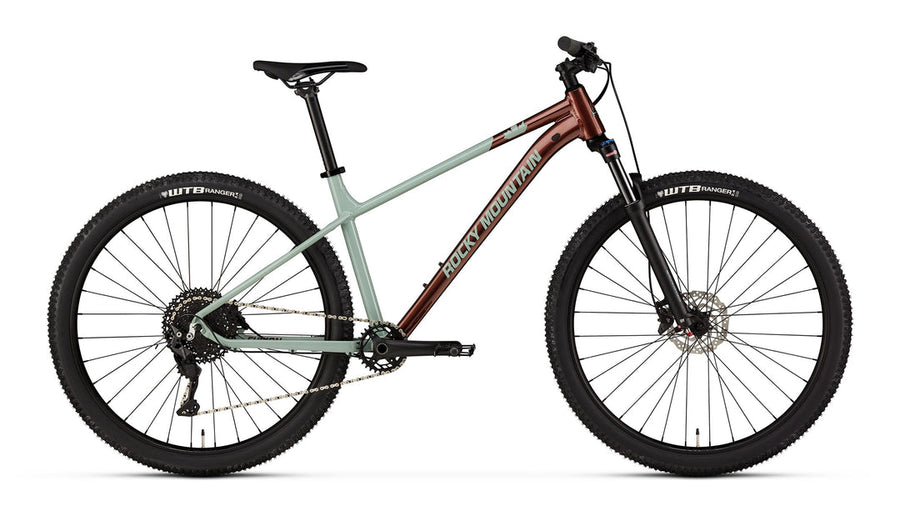

The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion’s responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway, to the trail, and onto the singletrack.
The Fusion’s geometry has been optimized to provide you with the best possible experience when heading out for a ride. We’ve updated the geometry to reflect the needs of a true ”downcountry” rider, including 29” wheels, a low standover height, longer reach, and a slacker head tube angle. With features like 100 mm of front travel, internal cable routing, and a 1x drivetrain, the Fusion sits at the top as our best all-around hardtail.
Specifications
|
Frame
|
Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube Rear Triangle
|
|
Fork
|
Suntour XCR32 LOR Air 100mm
|
|
Front travel
|
100mm
|
|
Headset
|
Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
|
|
Stem
|
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
|
|
Handlebar
|
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
|
|
Grips
|
Rocky Mountain Lock On Light
|
|
Brakes
|
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm
|
|
Shifters
|
MicroShift Advent X 10spd
|
|
Rear Derailleur
|
MicroShift Advent X 10spd With Clutch
|
|
Crankset
|
Rocky Mountain Microdrive 2PC | 30T |76mm Asymmetrical BCD | 24mm Spindle | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm
|
|
Bottom Bracket
|
Rocky Mountain Sealed - Shimano Compatible
|
|
Cassette
|
Shimano Deore 11-46T 10spd
|
|
Chain
|
KMC X10-1
|
|
Front Hub
|
Shimano TX505
|
|
Rear Hub
|
Shimano TX505
|
|
Spoke
|
2.0 Stainless
|
|
Rims
|
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Included
|
|
Tires
|
F: WTB Ranger Comp 29 x 2.4 // R: WTB Ranger Comp 29 x 2.4
|
|
Seatpost
|
Rocky Mountain 30.9mm
|
|
Saddle
|
Rocky Mountain 148 Steel
|
Geometry
|
Small |
Medium |
Large
|
X-Large
|
| Wheels (inch) |
29 |
29
|
29
|
29
|
Top tubes horizontal (mm)
|
589 |
616 |
643 |
671 |
Head tube angle (deg)
|
66.5 |
66.5
|
66.5
|
66.5
|
Head tube lenght (mm)
|
95 |
100 |
110 |
120 |
| Seat tube angle (deg) |
74.5 |
74.5
|
74.5
|
74.5
|
| Seat tube lenght (mm) |
380 |
420 |
445 |
480 |
| Rear center (mm) |
445 |
445
|
445
|
445
|
| Bottom bracket drop (mm) |
60 |
60
|
60
|
60
|
| Reach (mm) |
425 |
450 |
475 |
500 |
| Stack (mm) |
593 |
598 |
607 |
616 |
| Standover height (mm) |
763 |
776 |
786 |
801 |
| Wheelbase (mm) |
1153 |
1180 |
1209 |
1238 |
