The perfect blend of efficiency, capability, and reliability is now electrified.
By combining the power of our Dyname™ 4.0 drive system and the all around user friendliness of the Fusion, the Fusion Powerplay opens up a new world of exploration, from trails to the city. Stability, comfort, safety and ease of use are the names of the game here.
29" & 27.5"
Wheel size
120
Front travel (mm)
700 W
Max power output
108 Nm
Torque
Up to 720 Wh
Battery capacity
Specification
| Component |
Specification |
| Frame |
FORM™ Alloy | Press Fit BB | Internal Cable Routing | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible. Rear Triangle |
| Fork |
Suntour XCR32 AIR LOR DS Boost 29 = 120mm 46mm Offset | 27.5 = 100mm 42mm Offset |
| Front Travel |
120 |
| Headset |
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Stem |
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm |
| Handlebar |
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips |
Rocky Mountain Lock On Light |
| Brakes |
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT30 180mm | R:Shimano RT30 180mm |
| Shifters |
Shimano Deore 10spd |
| Rear Derailleur |
Shimano Deore 10spd |
| Cranks & Chainring |
Race Face Ride Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm |
| Bottom Bracket |
Shimano SM-BBMT500 |
| Cassette |
Sunrace CSMS2 11-46T |
| Chain |
KMC X10-1 |
| Front Hub |
Shimano MT410 | 15mm Boost |
| Rear Hub |
Shimano MT400 Boost 148mm |
| Spokes |
2.0 Stainless |
| Rims |
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
| Tires |
F: Maxxis Ardent 2.4 EXO // R: Maxxis Ardent 2.4 EXO |
| Seatpost |
Rocky Mountain 30.9mm |
| Saddle |
WTB Volt 142 |
| Drive System |
Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery |
480 Wh Removable Integrated Li-Ion | 100% Charged in 2:35 (4A) / 5:05 (2A) | 80% Charged in 1:55 (4A) / 4:00 (2A) |
| Remote |
Rocky Mountain Micro Remote |

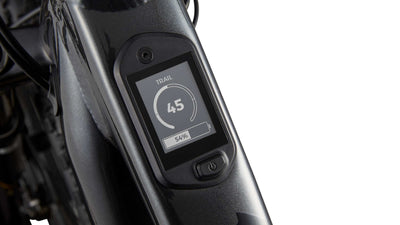

| Display |
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger |
Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4) |
Geometry
| Wheels |
27.5″ |
29″ |
29″ |
29″ |
29″ |
| Stack |
592 |
632 |
641 |
650 |
650 |
| Reach |
395 |
425 |
450 |
475 |
500 |
| Stack/Reach Ratio |
1.50 |
1.49 |
1.43 |
1.37 |
1.30 |
| Top Tube Length |
559 |
600 |
628 |
655 |
680 |
| Seat Tube Length |
345 |
380 |
420 |
445 |
480 |
| Seat Tube Angle |
74.5 |
74.5 |
74.5 |
74.5 |
74.5 |
| Head Tube Length |
110 |
100 |
110 |
120 |
120 |
| Head Tube Angle |
65.5 |
66.5 |
66.5 |
66.5 |
66.5 |
| BB Drop |
50 |
60 |
60 |
60 |
60 |
| BB Height |
305 |
314 |
314 |
314 |
314 |
| Front Center |
688 |
727 |
755 |
784 |
809 |
| Chainstay Length |
440 |
445 |
450 |
455 |
460 |
| Wheelbase |
1,123 |
1,165 |
1,199 |
1,233 |
1,263 |
| Rake |
40 |
46 |
46 |
46 |
46 |
| Trail |
118 |
113 |
113 |
113 |
113 |
| Standover Height |
777 |
796 |
795 |
791 |
786 |
