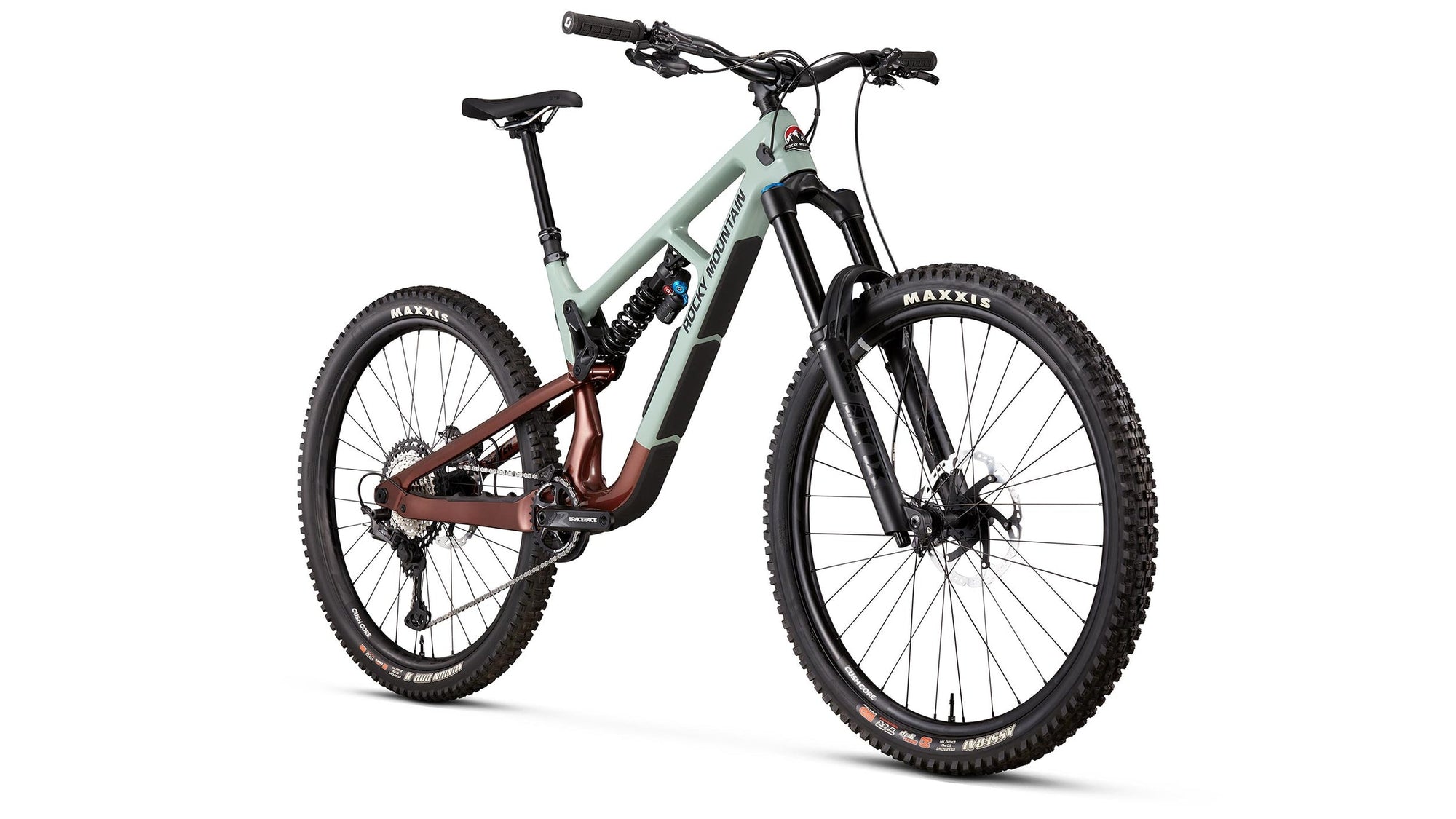

Expect villainous levels of confidence with a buttery, stable finish. The Slayer, rooted in a long lineage of freeride, is now capable of more than ever.
New for this bike, a mixed-wheel setup, a longer and slacker design and the addition of a PenaltyBox™, storage compartment on all carbon models. Nothing can stop you now.
The Slayer’s reinforced frame means it’s bike park tough and ready for big mountain charging, available in both SMOOTHWALL™ carbon and FORM™ Alloy.
Carbon models now come with our new PenaltyBox™ downtube storage, including a custom storage solution for both a tube and tools.
Specification
| Frame |
SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing and Storage Compartment | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 180mm Travel. SMOOTHWALL™ Carbon Rear Triangle
BB Standard: BSA, 73mm, Threaded
Colors: Grey / Black; Red / Blue
|
| Fork |
Fox 38 Float EVOL GRIP2 Performance Elite Series | 180mm | 44mm Offset
Travel: 180mm
Spring Type: Air
|
| Shock |
Fox DHX2 Performance Elite | Steel Spring | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230 x 65mm | Size-Specific tune in FAQ
Travel: 180mm
Spring Type: Air
|
| Bottom Bracket |
Shimano SM-BBMT500
|
| Headset |
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
|
| Stem |
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m
|
| Handlebar |
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
|
| Saddle |
WTB Volt Race 142
|
| Seatpost |
Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
|
| Grips |
ODI Elite Pro Lock On
|
| Rear Derailleur |
Shimano XT
|
| Crank |
Shimano XT | 32T | 24mm Spindle | 170mm Crank Length
|
| Shifters |
Shimano XT
|
| Cassette |
Shimano XT 10-51T
|
| Chain |
Shimano M8100
|
| Brakes |
Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT86 203mm | R:Shimano RT86 203mm
|
| Rims |
Race Face ARC HD 30 | 32H | Tubeless Ready - Tape / Valves Incl | Cushcore XC Tire Inserts | Lightweight | Tire & Rim Protection
|
| Spokes |
DT Swiss Champion 2.0
|
| Front Hub |
Rocky Mountain Sealed Boost 15mm
|
| Rear Hub |
DT Swiss 370 Boost 148mm | 18T Star-Ratchet
|
| Tires |
F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
|
Geometry
|
Pos.1 (slack)
LG
|
Pos.1 (slack)
XL |
| Top Tube Horizontal (mm) |
622 |
655 |
| Head Tube Angle (deg) |
62.5 |
62.5 |
| Head Tube Length (mm) |
110 |
125 |
| Seat Tube Angle (deg) |
77 |
77 |
| Seat Tube Length (mm) |
440 |
470 |
| Rear Centre (mm) |
440 - 450 |
440 - 450 |
| Bottom Bracket Drop (mm) |
29 |
29 |
| Reach (mm) |
474 |
504 |
| Stack (mm) |
638 |
651 |
| Standover Height (mm) |
820 |
822 |
| Wheelbase (mm) |
1281 |
1317 |
